iCARZONE MA200 Plus
- Operating System: Android 8.1
- Memory: 2GB
- Storage: 64GB
- CPU: MT6580 Contex-A74 1,3GHz
- Screen Size: 5-inch
- Battery: 3150 mAh / 3.8V
- Bluetooth: BT5.0
- Working Environment: -10°C ~ 50°C (14°F ~ 122°F)
- Storage Environment: -20°C ~ 60°C (-4°F ~ 140°F)
- Working Voltage: 5V
- Working Current: ≤2.5A
- Supported Protocols: SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2
- ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, J1708, J1939, CANFD
Don't know which product to choose?
You can click the Support button below to contact us. We'll recommend the product that best suits your needs.

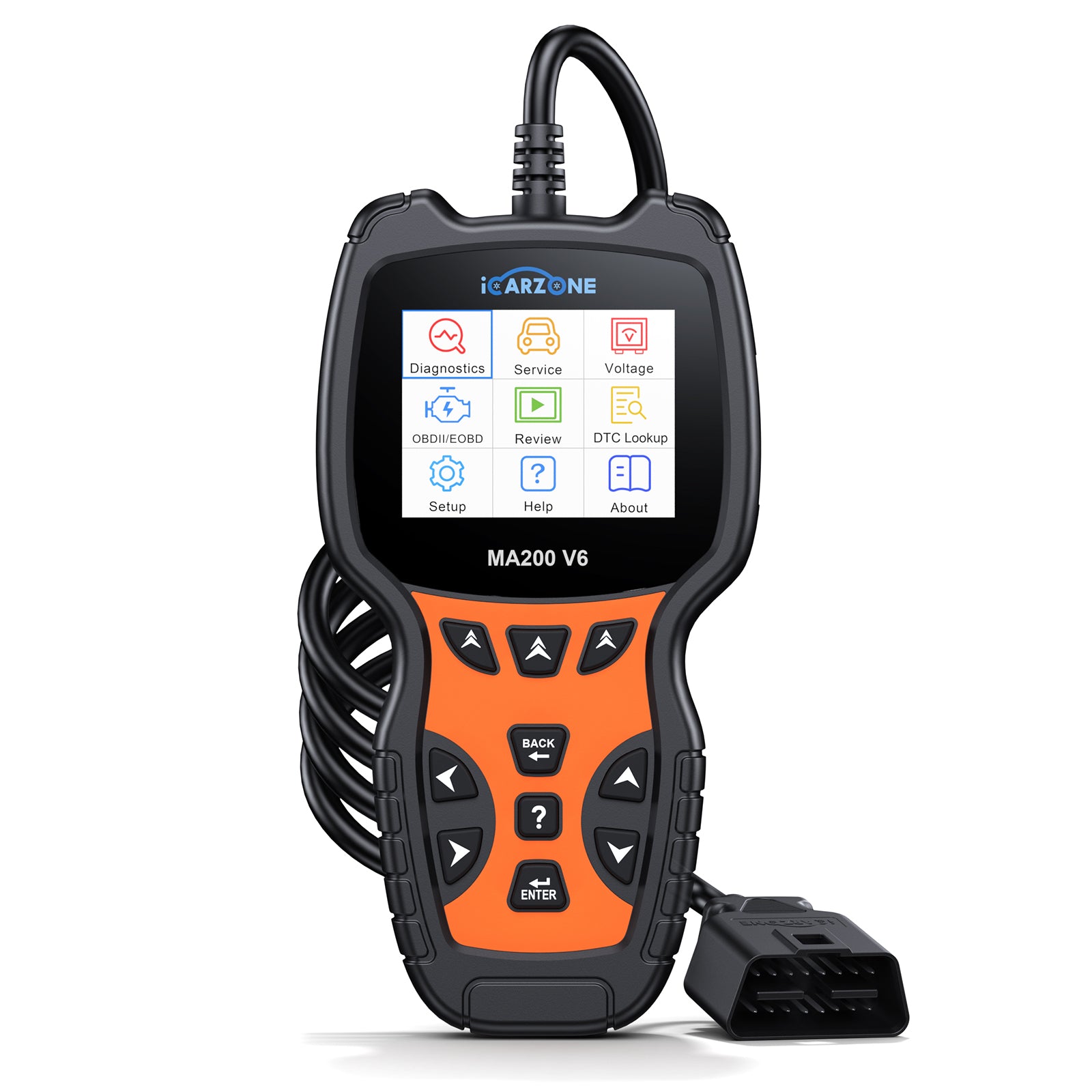

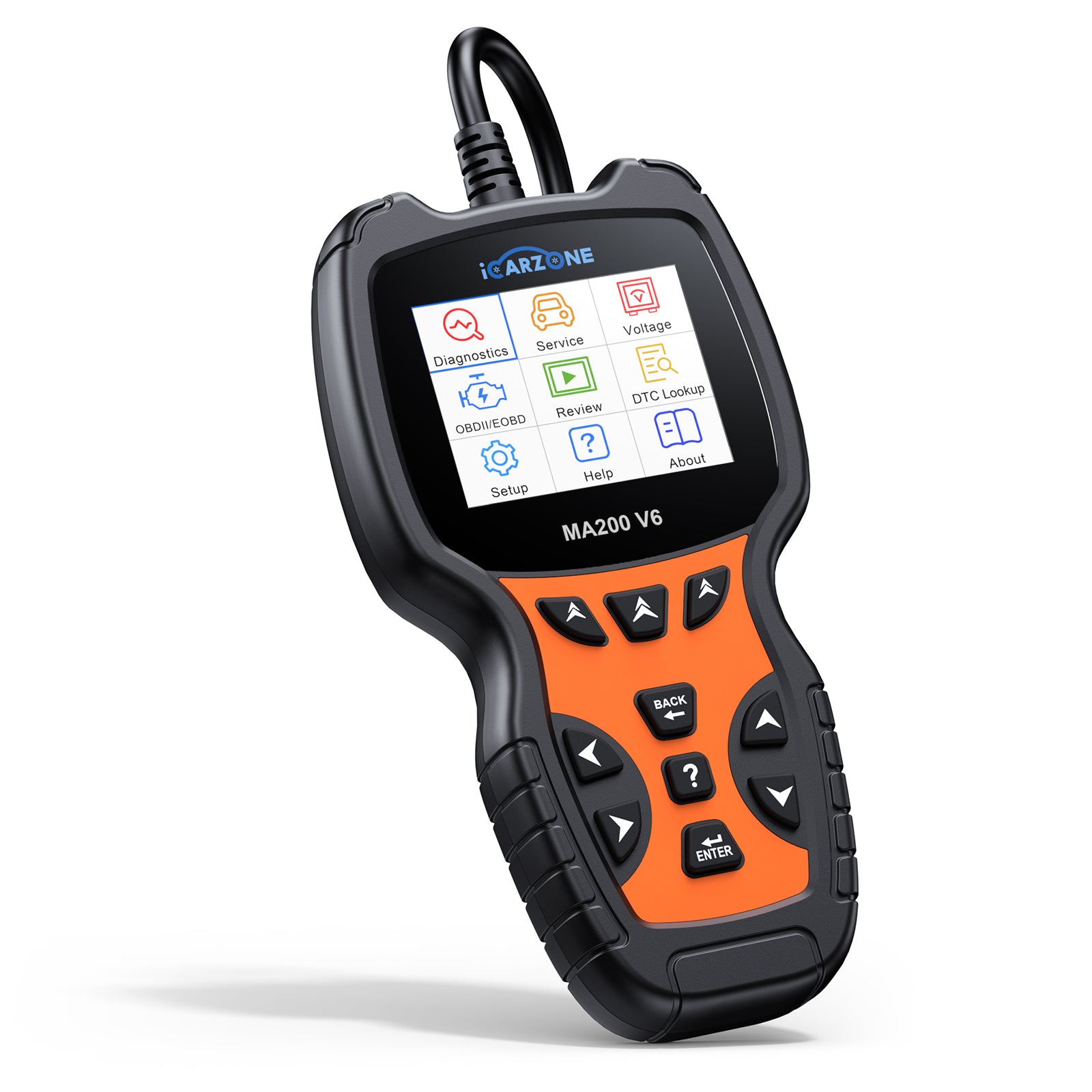

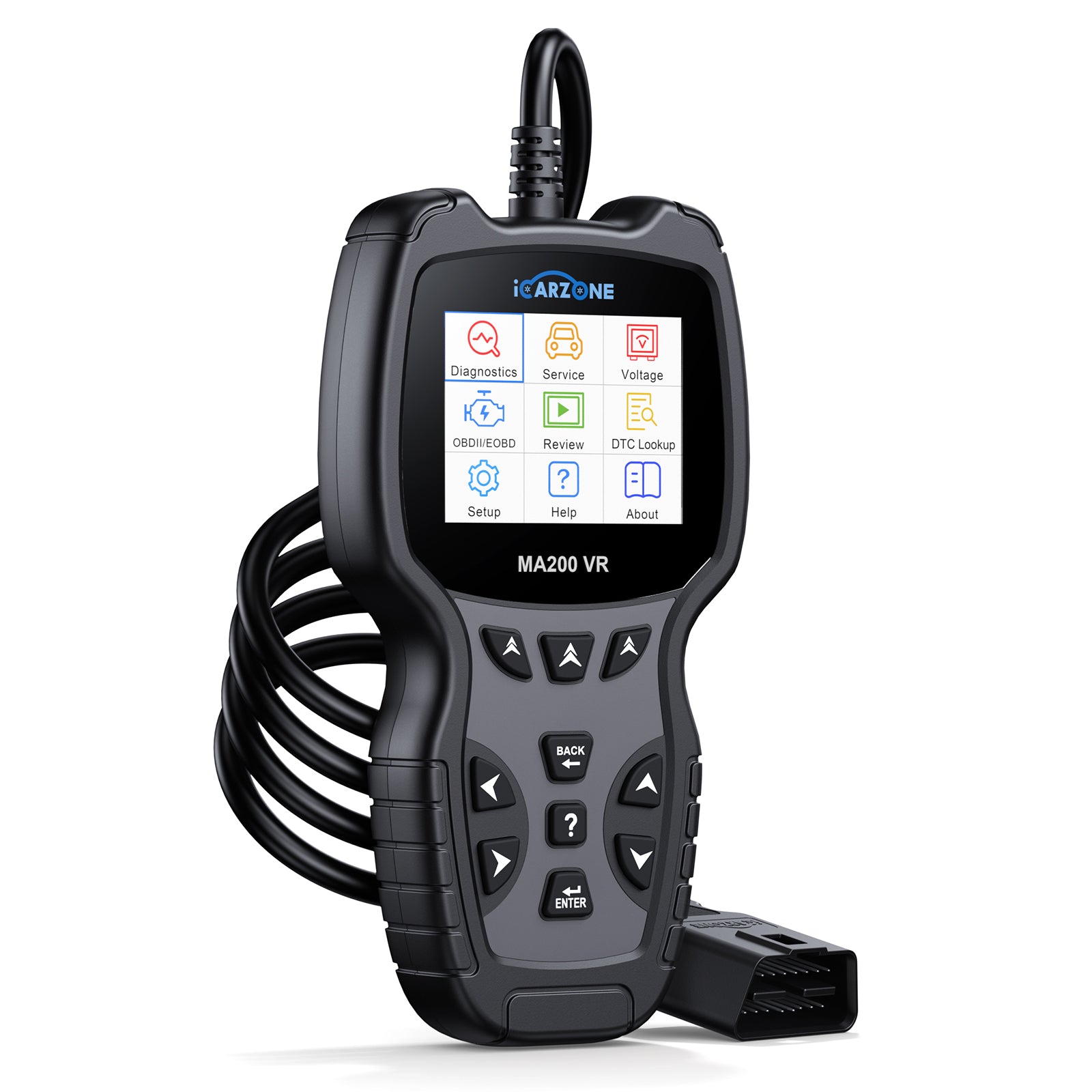

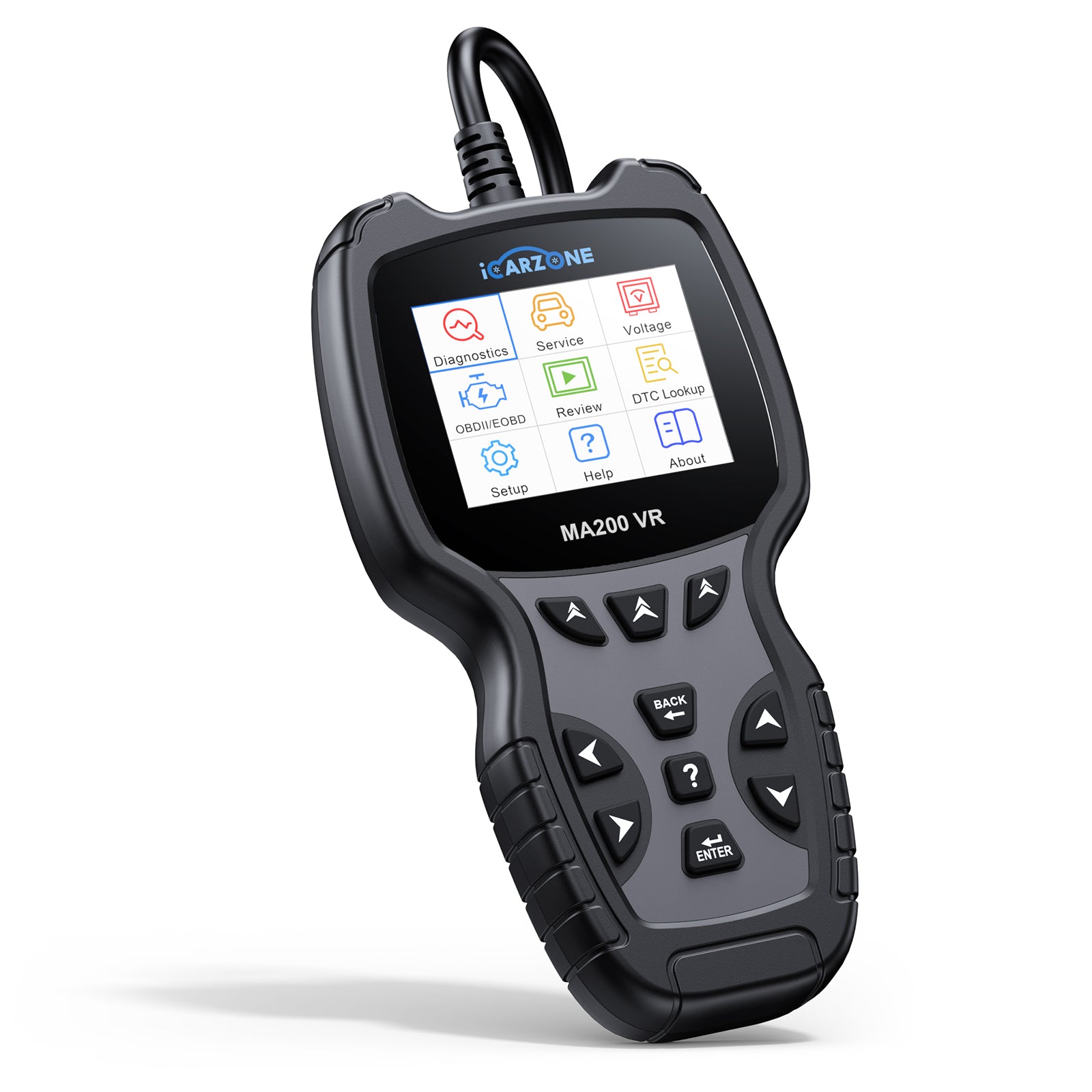

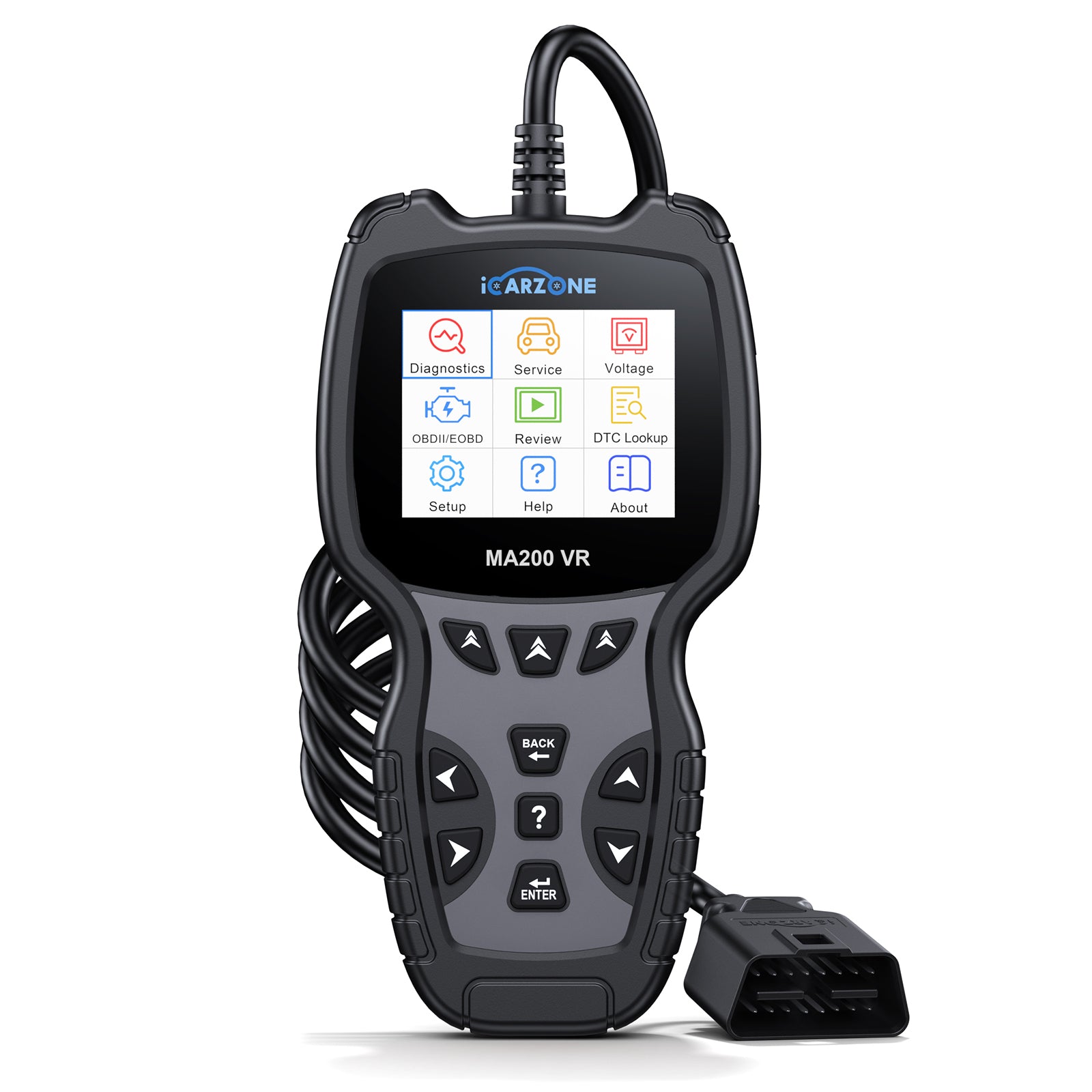

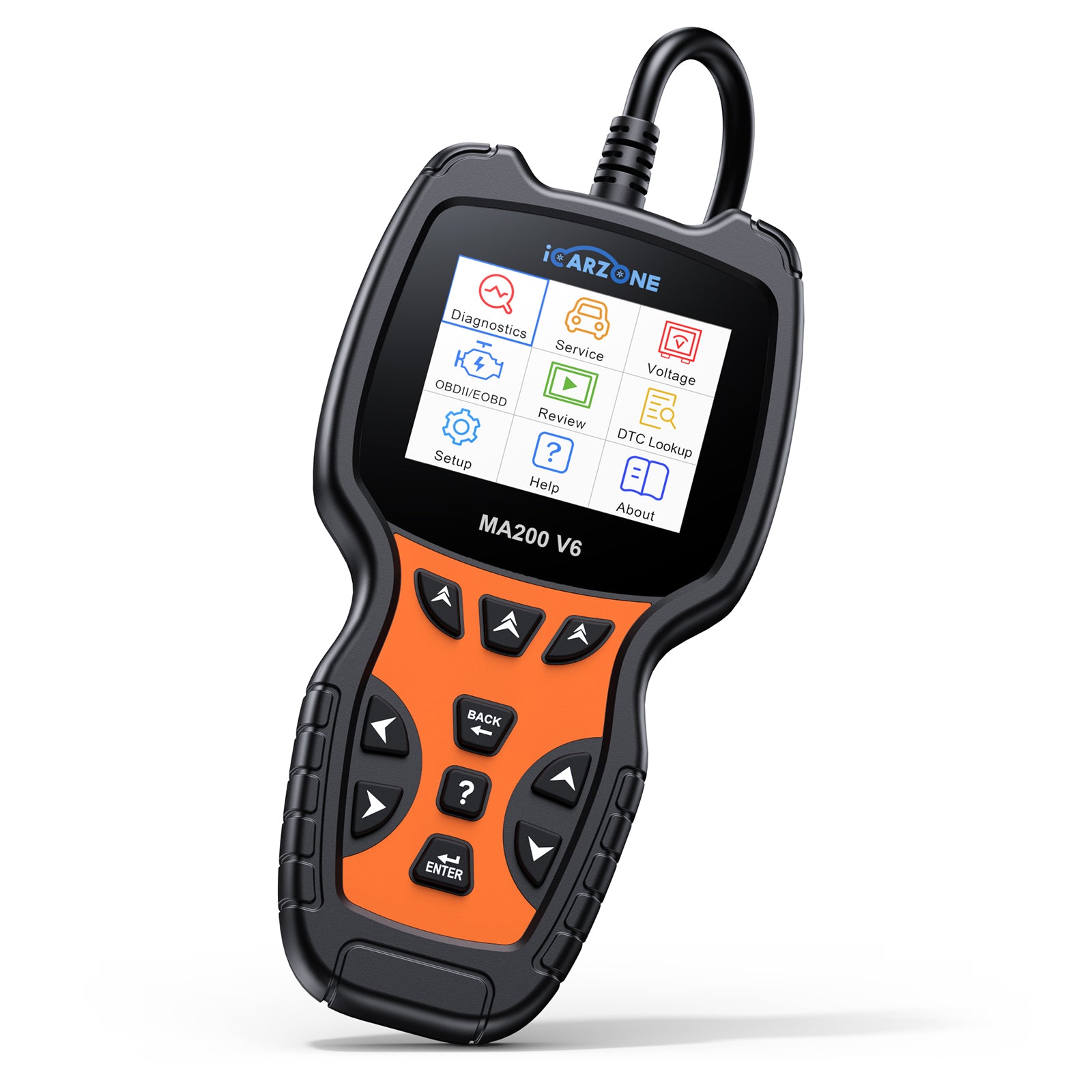

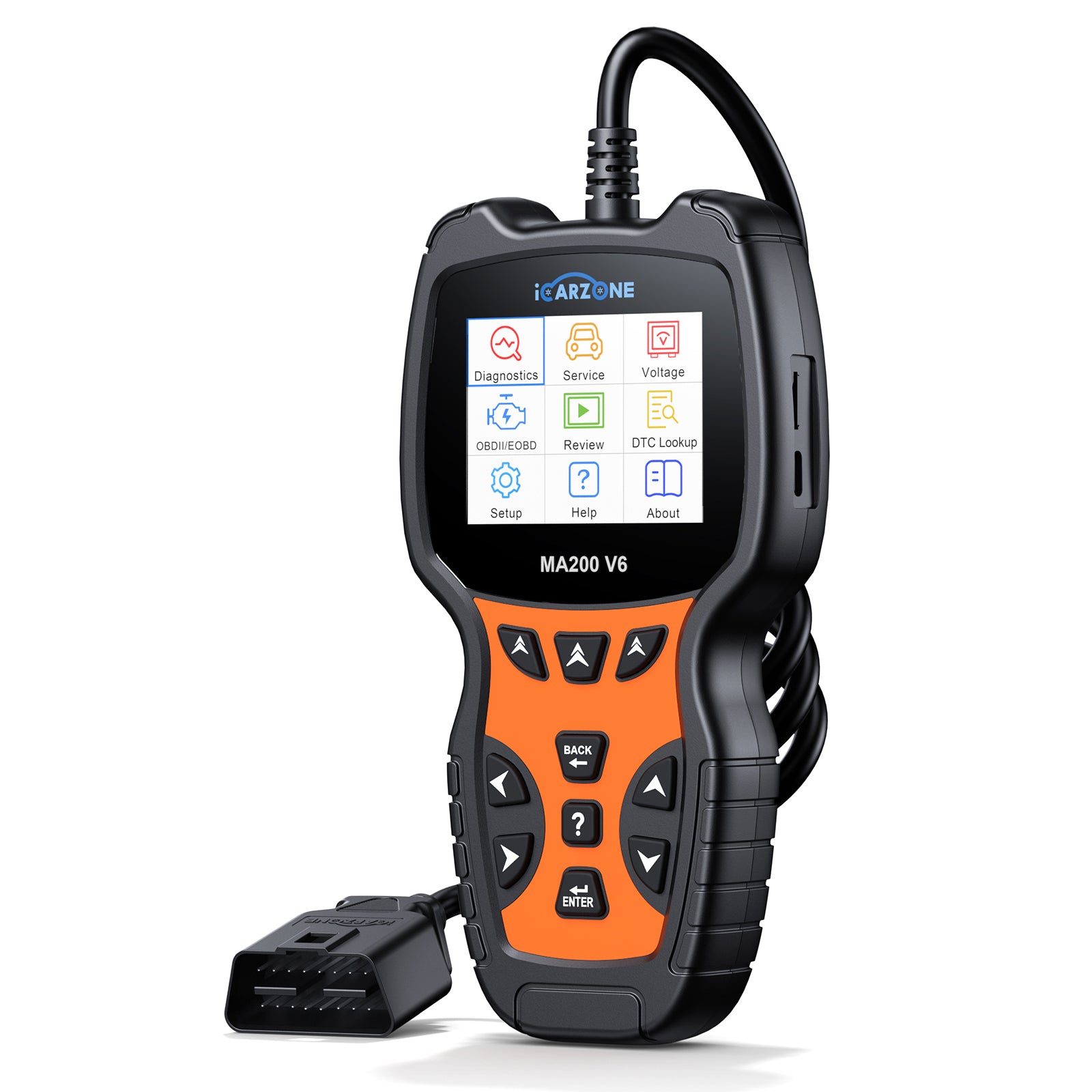

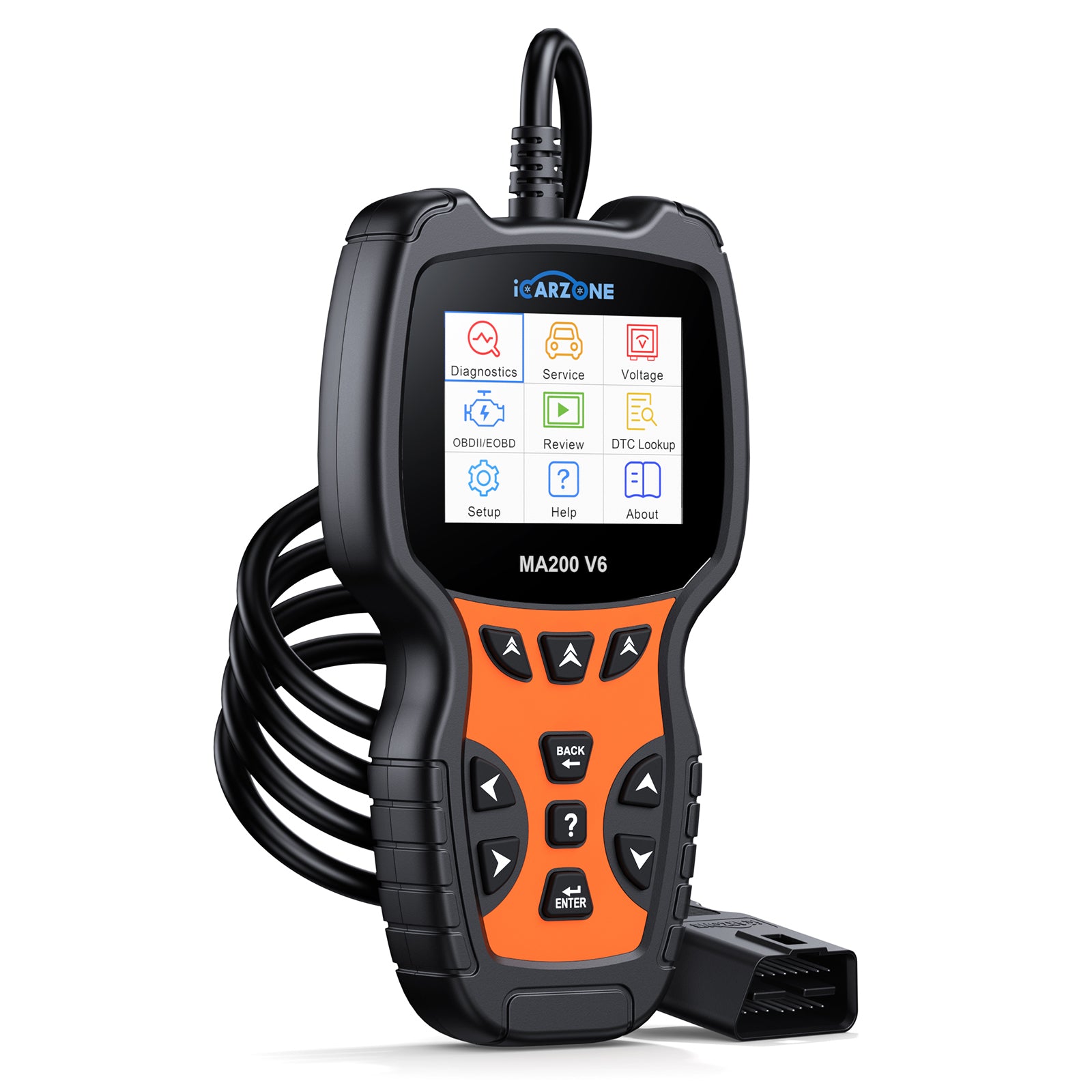

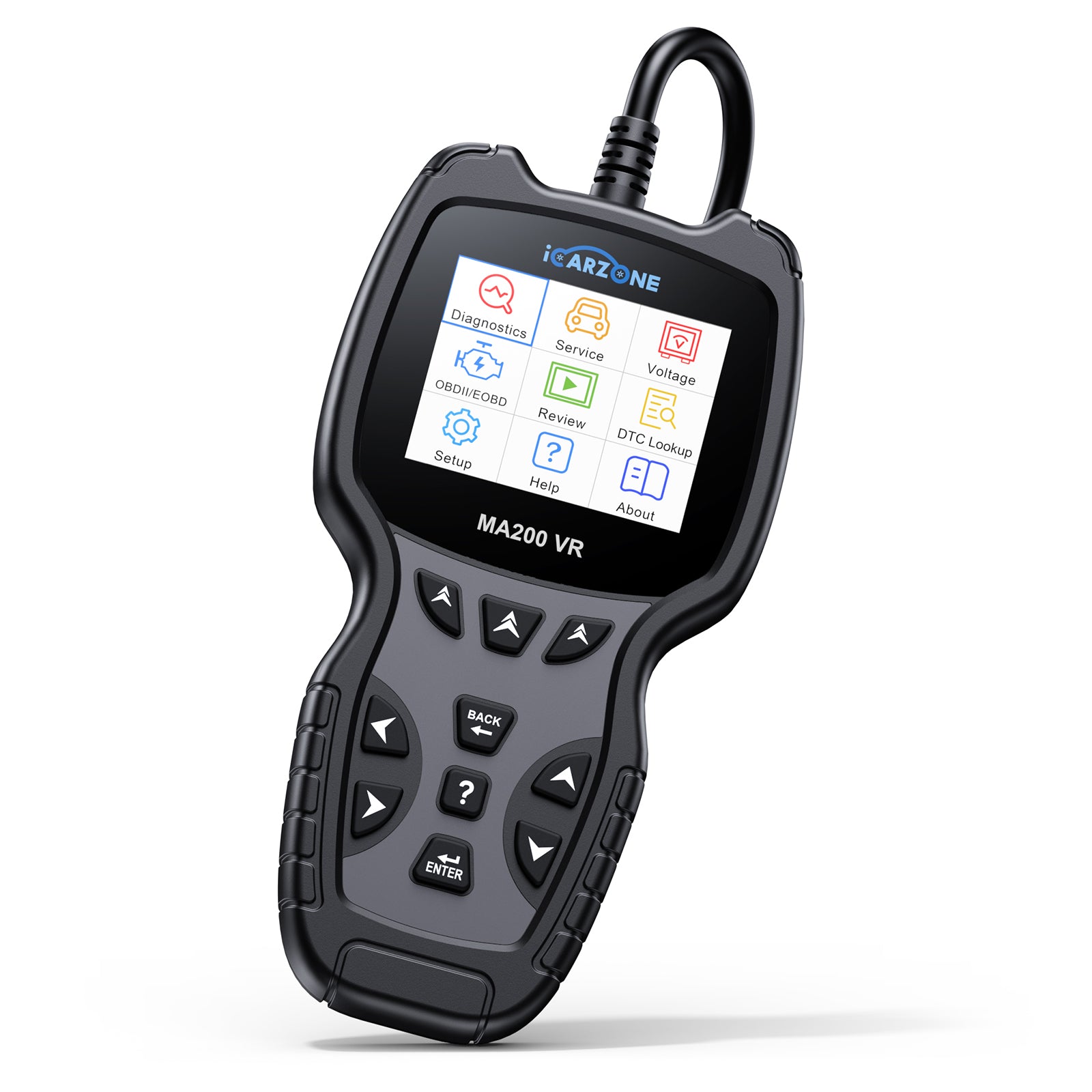

The iCarzone MA200 V6/MA200 Plus is a professional and powerful vehicle fault diagnosis tool developed by iCarzone Inc. Featuring a 2.8" TFT LCD display and unique diagnostic software, it enables technicians to accurately diagnose complex vehicle problems with full ECU diagnosis and multiple test modes including CANBUS, ISO9141, KWP2000, and J1850.
Key Advantages
Designed for professionals, with powerful features and intuitive operation
Professional & Powerful
Specifically designed for technicians to accurately diagnose complex vehicle problems with full ECU diagnosis and comprehensive testing capabilities.
Extensive Vehicle Coverage
MA200 V6 supports premium European brands while MA200 Plus works with all vehicle makes and models.
Multiple Service Functions
Includes Oil Reset, EPB, BMS, SAS, DPF, and TPMS services for comprehensive vehicle maintenance.
User-Friendly Operation
Auto VIN identification simplifies operation, with multi-language support and an intuitive menu-driven interface.
Comprehensive OBDII Support
Supports all 10 OBDII/EOBD test modes for reading and clearing fault codes, live data, and more.
Data Management
Save and review test results, upload to PC for reporting, and access a built-in DTC lookup database.
Vehicle Diagnostic Functions
Function Category | Feature | Description |
---|---|---|
Full System Diagnosis | Auto Scan | Comprehensive scanning of all ECUs to locate and retrieve DTCs with fault status display |
Control Unit Diagnosis | Manual selection and diagnosis of specific control systems (Engine, Transmission, ABS, etc.) | |
Read/Clear Fault Codes | Read and display fault codes, clear codes after repairs | |
Live Data Stream | View and record real-time data from various vehicle modules | |
Actuation Test | Access and perform tests on specific subsystems and components |
Special Service Functions
Service | Description |
---|---|
Oil Reset | Reset maintenance cycle and mileage after oil change, turn off oil service lamp |
Electronic Parking Brake (EPB) | Deactivate and activate EPB system for replacement and initialization |
Battery Management System (BMS) | Register new battery to BMS system when replacing battery |
Steering Angle Sensor (SAS) | Calibrate or recalibrate steering angle sensor |
Diesel Particulate Filter (DPF) | Request DPF regeneration process when DPF is clogged |
Tire Pressure Monitoring System (TPMS) | Display sensor IDs, input replacement IDs and test sensors |
Technical Specifications
Precise engineering for reliable performance in professional environments
What's Included
- User Manual
- OBDII Main Cable
- Data Cable
- TF Card and Card Reader
Supported Protocols
- CANBUS
- ISO9141
- KWP2000
- J1850
Why Choose iCarzone MA200?
- Professional Grade: Designed specifically for automotive technicians and service professionals
- Comprehensive Coverage: From European luxury brands to all vehicle makes and models
- Advanced Diagnostics: Full ECU diagnosis with real-time data and actuation testing
- Essential Service Functions: Complete maintenance capabilities for modern vehicle servicing
- User-Friendly Design: Auto VIN identification and intuitive operation interface
- Reliable Support: Professional technical support and regular software updates
