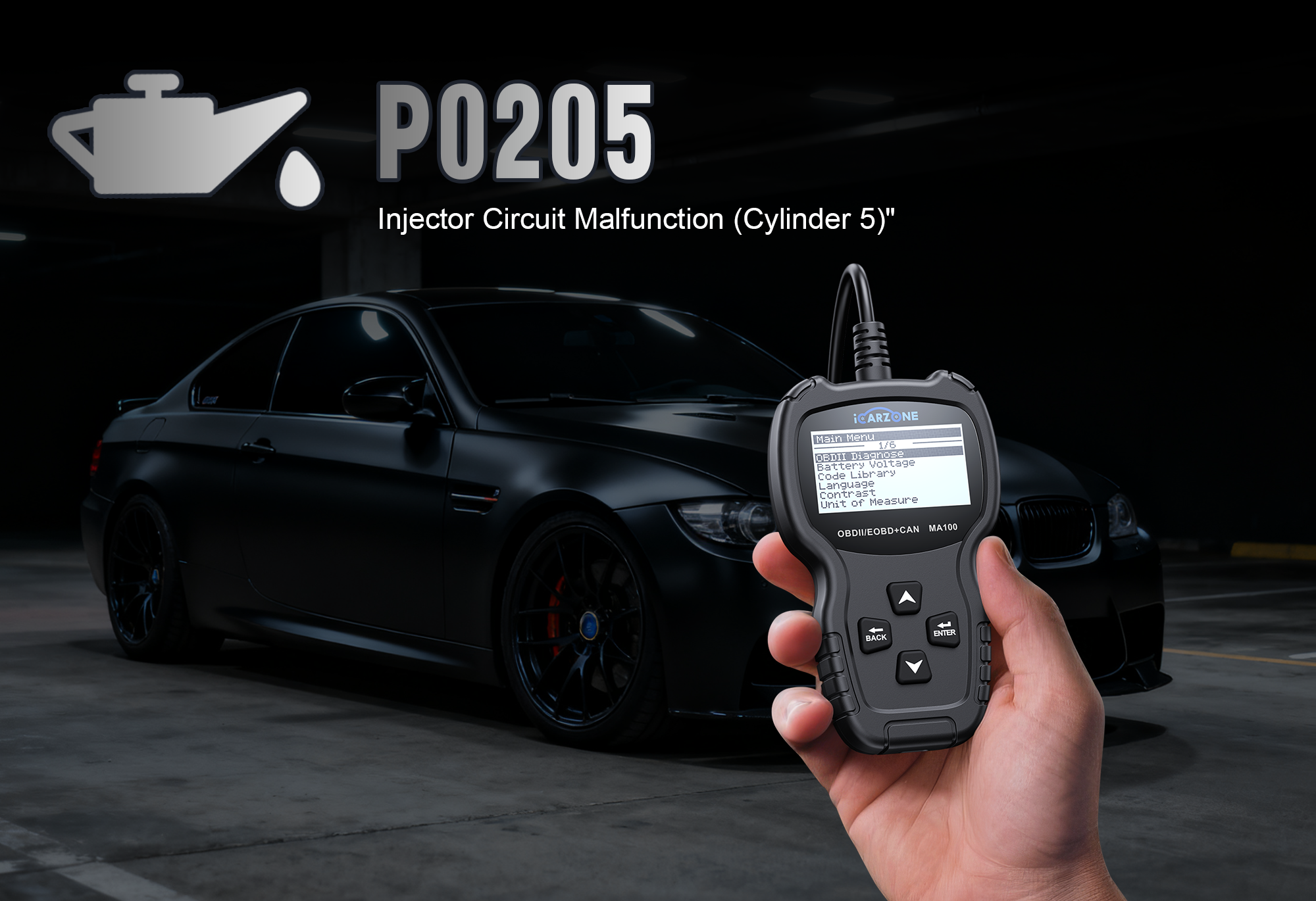

1. What is P0205?

P0205 is a Diagnostic Trouble Code indicating an Injector Circuit/Open for Cylinder 5. The ECM expects a defined current/voltage pattern from the injector driver; P0205 triggers when that circuit is open, shorted, or the injector fails to respond.

Why It Matters for Ford F-150 EcoBoost

In turbocharged EcoBoost engines (2.7L and 3.5L), a single injector fault (like P0205) often causes misfire under load, rough idle, and possible catalytic converter stress. Quick identification—using targeted long-tail diagnostics like how to fix P0205 on F-150 3.5L EcoBoost—reduces downtime and repair cost.

2. Common Causes in Ford F-150 EcoBoost

P0205 commonly appears in 2017–2022 Ford F-150 EcoBoost models. Real-world causes and examples include:

• Failed Injector (Cylinder 5) — Example: 2019 F-150 3.5L reported P0205 and rough idle. Swapping injectors confirmed cylinder 5 injector drew no current; replacing injector fixed it.
• Open / Damaged Wiring — Example: Wiring chafed near the valve cover causing an open in the injector feed to cylinder 5; insulation wear led to intermittent P0205 under vibration.
• Corroded Connector — Example: Coastal vehicle with salt exposure had injector connector corrosion; cleaning and dielectric protection cleared the code.
• PCM/Driver Output Fault — Example: After a jump-start event, cylinder 5 injector driver failed; PCM reflashing and testing of driver circuits identified the fault.
• Injector Harness Short to Ground — Example: After engine work, a pinched harness caused a short; insulation repair resolved P0205.

3. Key Symptoms in Ford F-150 EcoBoost

Owners usually observe these P0205 symptoms — look for them especially while towing or under acceleration:

• Check Engine Light with misfire codes (e.g., P0305) alongside P0205
• Rough idle and noticeable vibration (cylinder 5 misfire)
• Poor acceleration under load and reduced fuel economy
• Engine hesitation and occasional stalling at low RPM
• Failing emission test due to unburned fuel / misfire

4. Ford F-150 Models Prone to P0205

While injector codes can occur on many vehicles, these Ford F-150 EcoBoost years see higher incidence:

• 2017–2022 Ford F-150 2.7L EcoBoost (common harness routing near hot components)
• 2018–2022 Ford F-150 3.5L EcoBoost (higher mileage towing usage)
• 2021–2022 Ford F-150 PowerBoost Hybrid (shared injector architecture for hybrid-assisted engines)

Note: search-friendly TSB or long-tail anchor such as "MA100 injector tester for Ford EcoBoost diagnostics" can help readers discover the guide when they search repair options.

5. Diagnostic Steps (Ford F-150 Focus)

Diagnose P0205 using the MA100 and standard tools with this model-specific procedure. Using a dedicated injector tester speeds up isolation between wiring, injector, and PCM driver faults.

Example: 2020 F-150 3.5L with P0205 — MA100 bench test showed open coil in injector 5; replacement and re-test cleared misfire and P0205.

6. Fixes & Execution

• Replace Injector (Cylinder 5): Use OEM or high-quality replacement injector matched to your EcoBoost engine.
• Repair/Replace Wiring Harness: Repair chafed or pinched wiring; use heat-resistant sleeving near hot components and secure harness routing.
• Clean/Replace Connector: Replace corroded connectors; apply dielectric grease to prevent future corrosion.
• PCM Diagnosis / Reflash: If wiring and injector test good, test PCM driver output; reflashing or module replacement may be needed.
• Use MA100 for Bench Validation: Bench-test suspect injectors with MA100 to confirm electrical and spray characteristics before replacement.

Practical Workflow

1. Always bench-test the injector with MA100 before replacing—many P0205 cases are wiring/connector-related.
2. If wiring repair is needed, protect harness with heat-shield sleeves and secure routing to avoid chafe.
3. Clear codes and perform a full system recheck with load (towing simulation if possible) to ensure stability.

7. Repair Costs & Safety Tips

• OEM Injector: $70–$220 (varies by supplier and engine size)
• Wiring Repair Kit / Connectors: $20–$70
• MA100 Injector Tester: Cost varies—investing in MA100 can save diagnostic time and avoid unnecessary replacements
• PCM Reflash / Dealer Service: $0–$200 DIY vs. $150–$300 dealer
• Professional Repair (parts + labor): $300–$700 depending on scope

Safety Precautions

• Relieve fuel system pressure before removing injectors to avoid fuel spray.
• Work on a cooled engine — hot components can cause burns and damage wiring insulation.
• Disconnect battery when performing wiring repairs to prevent shorts or PCM damage.
• Label connectors when removing multiple injectors to avoid misconnections during reassembly.

8. Preventive Maintenance

Reduce P0205 risk with these maintenance tips:

• Inspect injector wiring and connectors every 30,000 miles — especially if you tow frequently.
• Use quality fuel and periodic injector cleaning to avoid deposits causing electrical or spray issues.
• Use MA100 to periodically test injector electrical health if you perform regular DIY maintenance.
• Protect harness routing from heat and abrasion with sleeves and clips during engine work.

9. Frequently Asked Questions

10. Summary

P0205 (injector circuit open — cylinder 5) is a frequent injector-related fault in Ford F-150 EcoBoost trucks. Common causes include injector failure, wiring opens, and corroded connectors. Use a systematic approach—scan, inspect, bench-test injectors with MA100, and check wiring and PCM drivers—to resolve most P0205 cases efficiently.
